"Set Gold Pro"
The whole "Food line" series uses only certified materials, suitable for contact with food and certified "Safe food materials". In addition, any processing on the materials is carried out in compliance with the regulations.

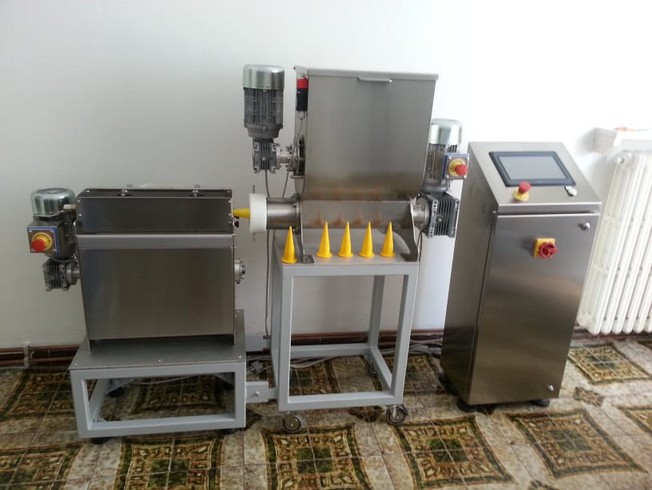

"Set Gold" consists of a complete production line: forming machine, kneading and extrusion machine, control panel.
"Set Gold" is the flagship of our production. The completely independent control panel houses the entire electrical system of the production line. It mounts a very large panel that allows the operator to control the entire cycle in a simple and intuitive way.
The internal plc allows you to use various functions to optimize the performance of the machine and the shaping of the dough used. It allows you to operate with variable speed of the roller, or with back and forth repetitions without having to change any parameters. It will be sufficient to choose the number of repetitions desired and the software will instantly transmit the necessary parameters to the machine. Simple and intuitive, it is the machine that every company dreams of having in its production cycle.
The "Set gold" is composed as follows:
Forming machine in food version with automatic cutting. It is able to work with continuous rotation of the roller, or with the “Rolling table effect” system. It is an extraordinary machine, which thanks to the PLC control allows to shape the sphericity of the boilies with the "Rolling table effect" system. In fact, thanks to a software designed by the company “Mauri carpfishing”, the roller performs very fast movements in a clockwise and anticlockwise direction, giving the boilies a perfect sphericity. It is also possible to vary the speed of the roller.
It can be supplied with different set-ups for 10-12-14-16-18-20-22-24-26-28-30-32-40mm balls. On request, further measures. 3-year warranty on the entire "Food line".

NB before placing your order please carefully consult , "sales terms and guarantee"




(All. IIA DIR. 2006/42/CE)
Technical specifications
"Set Gold Pro"

"Top quality" forming machine built with all materials certified for food;
"Top quality" kneading and extrusion machine built with all materials certified for food;
• Certified stainless steel control cabinet with integrated plc;
• Motors of Italian production with thermal protection according to CE standards;
• Machine support in painted metal;
• 3-year warranty for the entire "Food line", continuous assistance via e-mail, telephone or Skype.
Weights and measurements
"Set Gold Pro"

Forming machine cubic volume cm.75 x 31 x 53 h
Forming machine weight Kg. 70,00;
Packaging volume cm.80 x 60 x 47 h
Combined machine and packaging weight Kg. 90,00;

Extruding machine cubic volume cm.80 x 40 x 64 h
Extruding machine weight Kg. 74,00;
Packaging volume cm.86 x 67 x 75 h
Combined machine and packaging weight Kg. 99,00;

Forming machine table cubic volume cm.60 x 40 x 38 h
Weight Kg. 20,00;
Packaging volume cm.65 x 45 x 45 h
Combined machine and packaging weight Kg. 28,00;

Extruder machine table cubic volume cm.60 x 40 x 38 h
Extruder machine table Kg. 24,00;
Packaging volume cm.65 x 45 x 75 h
Combined machine and packaging weight Kg. 35,00;

Stainless steel cabinet control panel cubic volume cm.40 x 40 x 100 h
Stainless steel cabinet control panel weight Kg. 31,00;
Packaging volume cm.50 x 50 x 110 h
Combined machine and packaging weight Kg. 40,00.


Special case in OSB for export



Our OSB export wooden boxes are custom built for our machines.
The packaging is treated in detail.
Before being packed, each machine is carefully tested and bench tested. All test phases are filmed and saved in our archives. When closing each individual box, special seals are fixed on all corners of the box.
Furthermore, the packaging is concluded with the wrapping of sealing straps.
