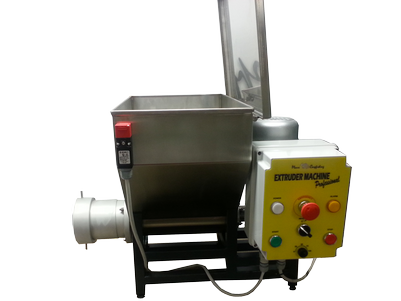

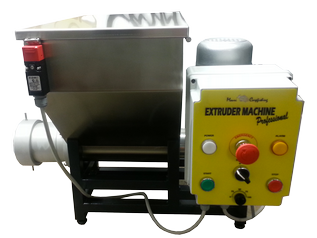

EXTRUDER MACHINE
"BASIC 500" - 49lt.


Extruder machine with 49 liters capacity stainless steel collection tank.
The auger drill or worm gear is made from stainless steel and is fitted with a rotation stabilizer and is powered by a 0.55 KW motor.
Speed is adjustable and it can run both clockwise and anti-clockwise.
Should it be required, it can also be fitted with a 0.75KW motor.

The BASIC 500 extruder machine can be installed on all Mauri Carpfishing boilie machines, forming a perfect line for boilie production


(All. IIA DIR. 2006/42/CE)
CARATTERISTICHE TECNICHE

·         Tank in AISI 304 stainless steel (53 liters).
·         Quick release AISI 304 stainless steel auger drill.
·         Anodized aluminum extrusion sleeve in AISI 304 stainless steel , with fitted stabilizer for auger drill.
·         Support with extendable legs.
·         Screws and bolts in top quality stainless steel
·         Motorization components made in Italy with thermal protection in compliance with EC laws.
·         Quick release mixer motor.
·         3 year guarantee with 24/24 customer assistance via email, telephone and Skype.
 Weights and measurements


Machine cubic volume  cm. 80 x 40 x 64
Machine weight 59 kg.


Packaging volume  cm. 86 x 67 x 60
Combined machine and packaging weight 79 kg
Special case in OSB for export
